Subaru WRX V5-6 EJ20 Plug-in ECU

Easy to install. Affordable. Reliable.

G4X Plug-in ECUs offer the latest in engine management technology, designed to easily maximize the potential of your car.

This ECU fits inside the factory OEM enclosure. Installation is a breeze, with no alteration of the factory wiring loom required for the models listed below.

Designed for the WRX V5-6 EJ20.

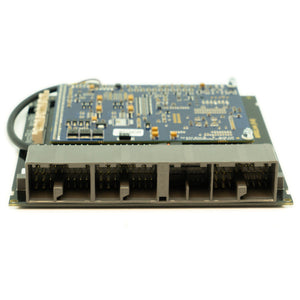

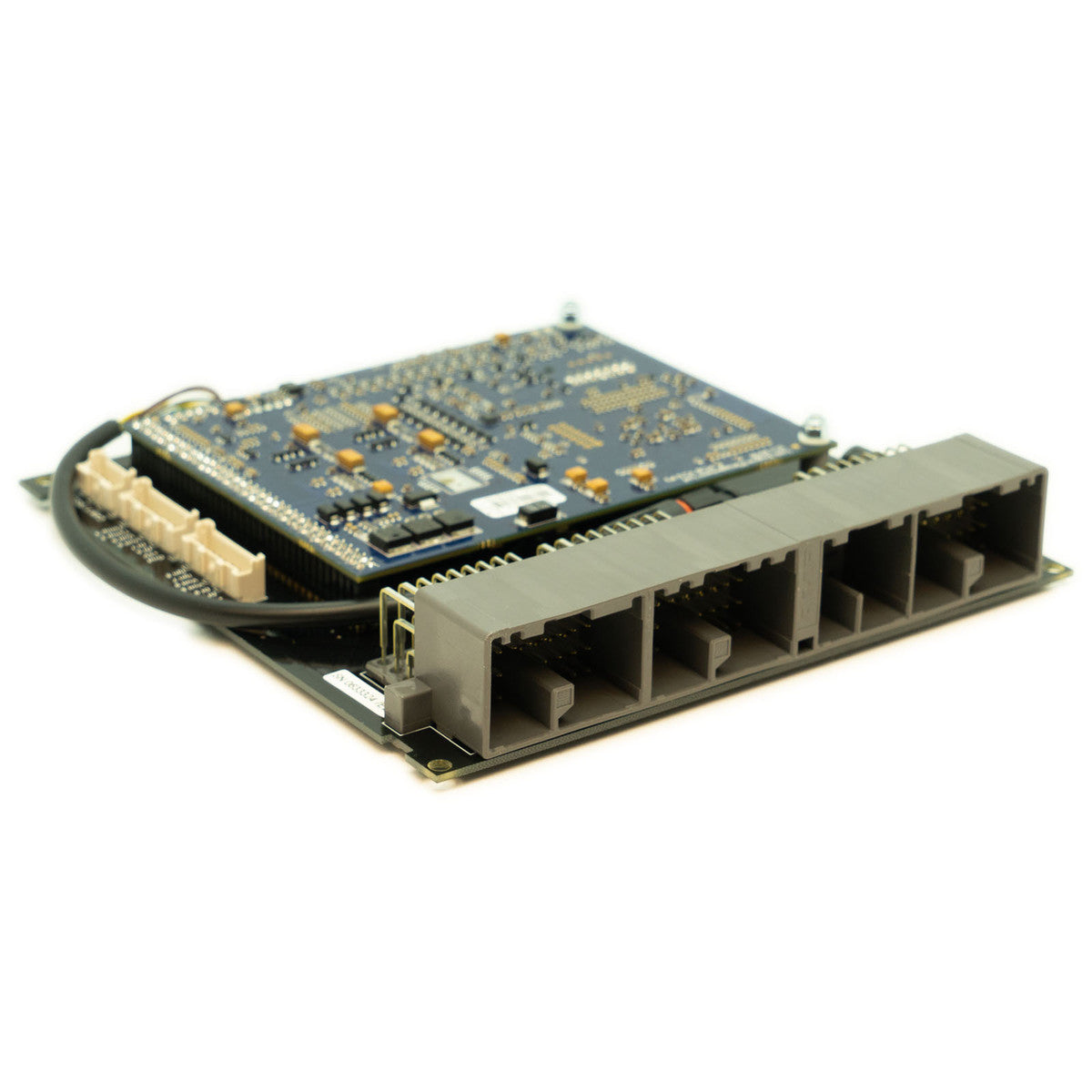

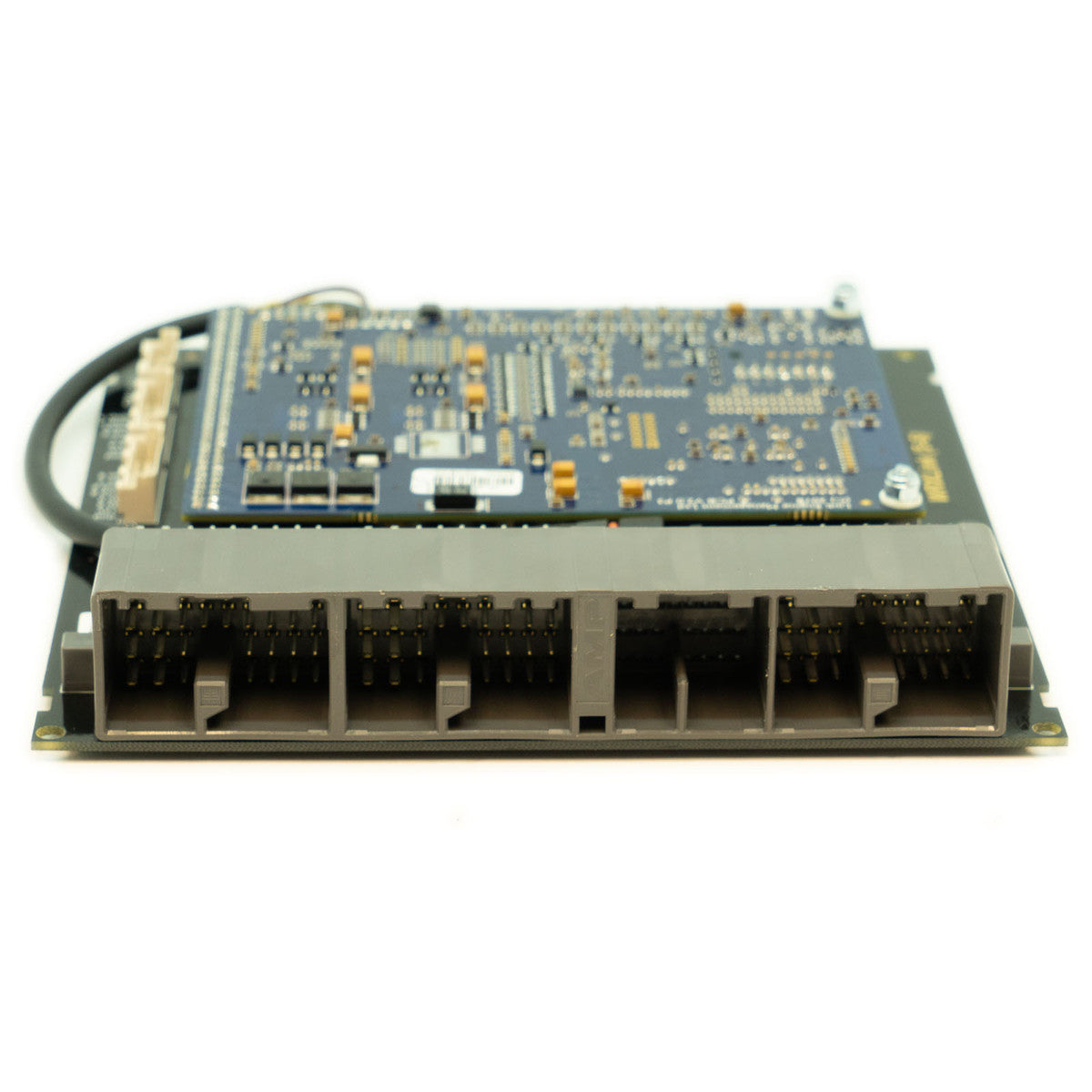

• Please check your pinout matches the header in the listed photo before purchasing.
• This ECU works for manual transmissions only.
• Air temp sensor highly recommended.
• Most factory features are supported.
• Check the features tab for I/O expansion options

Note: V1.4 onwards of this Plug-in features a new 4-pin powered CAN connector and cannot use the old CANPCB cable for CAN connection.  Use the CANJST4 (Code 101-0198) cable for connecting CAN devices.  This new 4-pin port and cable provides not only the CAN connection but also a protected 12V power supply and ground for powering the CAN devices.  The power supply is protected by a self-resetting fuse rated at 3A continuous.

Suitable Applications:

• GC8F
• GC8G
• WRX and STI from 09/1998 to 08/00
• MY99 & MY00

G4X Plug-in Key Features (where applicable):

• Up to 6D fuel and ignition mapping.
• Precision closed loop cam control (four cams, independent control).
• Sequential fuel delivery.
• Digital triggering, all OEM patterns.
• OEM idle hardware supported.
• 5D boost control with three switchable tables.
• Motorsport features - anti-lag, launch, flat shift.
• Continuous barometric correction (on board).
• CAN port.
• Quick Tune - automated fuel tuning.
• Individual cylinder correction.
• USB tuning cable included.
• Stats recording into on-board memory.
• Gear compensations for spark, boost and fuel.
• Real time selectable dual fuel, ignition and boost maps.
• Sync and crank sensors can be a combination of Hall effect, variable reluctance or optical.
• Boost control referenced to gear, speed or throttle position.
• 512 megabytes of data logging memory.
• Staged injection.
• Knock with "windowing".

The following expansion connector inputs/outputs are provided:
XS connector 1
Gnd                Sensor Ground Only
+5V Out          Low Current +5V Supply
DI 8               Digital Input
DI 9               Digital Input
An Volt 8        Analog 0-5V input
An Volt 9        Analog 0-5V input
Ign 7                Ignition 7 Auxiliary Output
Ign 8                Ignition 8 Auxiliary Output

Expansion connector 2
Gnd                Sensor Ground Only
+5V Out        Low Current +5V Supply
DI 5                Digital Input
DI 7                Digital Input
An Volt 5        Analog 0-5V input
An Volt 6        Analog 0-5V input
An Temp 2        Temperature sensor input
An Temp 3        Temperature sensor input
